Subaru Crosstrek Service Manual: Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > In-Vehicle Sensor (Auto A/C Model)

REMOVAL

CAUTION:

Be careful not to damage the sensors and interior trims when removing.

1. Disconnect the battery ground cable and wait for at least 60 seconds before starting work. NOTE">

2. Remove the cover assembly - instrument panel LWR driver INN. Instrument Panel Lower Cover > REMOVAL">

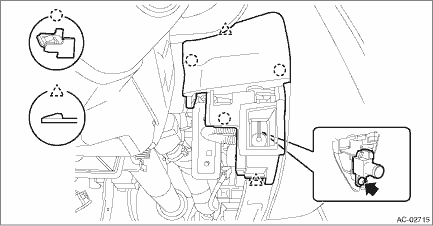

3. Remove the in-vehicle sensor.

(1) Disconnect the connector, and remove the aspirator hose.

(2) Release the claws and remove the cover switch - starter.

(3) Remove the screw and remove the in-vehicle sensor from the cover switch - starter.

Inspection
HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > In-Vehicle Sensor (Auto A/C Model)INSPECTION1. Set the vehicle to the following conditions.ItemConditionIgnition switchONA/C switchONTemperature adjustmen ...

Installation
HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > In-Vehicle Sensor (Auto A/C Model)INSTALLATIONInstall each part in the reverse order of removal. ...
