Subaru Crosstrek Service Manual: Component
EXTERIOR/INTERIOR TRIM > General Description
COMPONENT

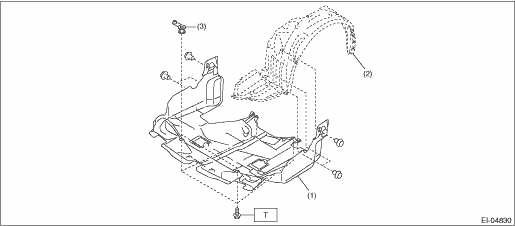

1. FRONT UNDER COVER
(1) | Under cover - front | (3) | Spacer - under cover | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Mud guard - front | T: | 18 (1.84, 13.3) | ||

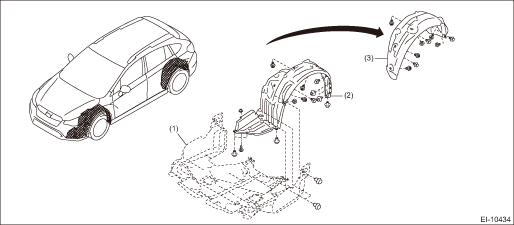

2. MUD GUARD
(1) | Under cover - front | (2) | Mud guard - front | (3) | Mud guard - rear |

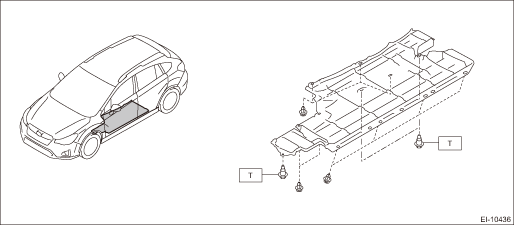

3. FLOOR UNDER PROTECTOR
Tightening torque: N·m (kgf-m, ft-lb) | |||||
T: | 7.5 (0.76, 5.5) | ||||
4. FUEL TANK PROTECTOR
For exploded view of the fuel tank protector, refer to “FUEL TANK” of “FUEL INJECTION” section. General Description > COMPONENT">

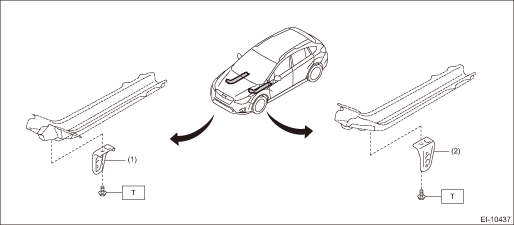

5. PROTECTOR OIL COVER
(1) | Protector oil cover RH | (2) | Protector oil cover LH | Tightening torque: N·m (kgf-m, ft-lb) | |
T: | 100 (10.2, 73.3) | ||||

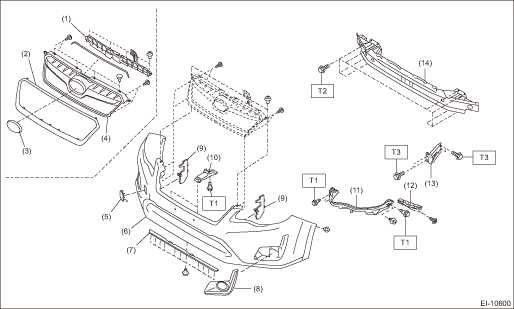

6. FRONT BUMPER
(1) | Bracket - grille | (8) | Cover - fog light A | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Ring - front grille | (9) | Radiator gasket | T1: | 7.5 (0.76, 5.5) |
(3) | Ornament front | (10) | Bracket - front center LWR | T2: | 32 (3.26, 23.6) |
(4) | Front grille ASSY | (11) | Bracket - front bumper corner | T3: | 65 (6.63, 47.9) |
(5) | Cover - front bumper A | (12) | Bracket - front bumper side | ||
(6) | Bumper face - front | (13) | Gusset COMPL - front side | ||
(7) | Under spoiler - front | (14) | Bumper beam COMPL - front | ||

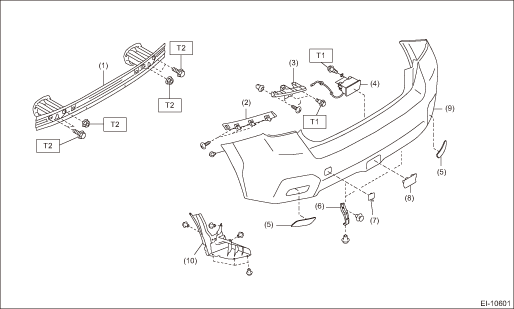

7. REAR BUMPER
(1) | Bumper beam COMPL - rear | (6) | Bracket - rear bumper lower | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Bracket - rear bumper side | (7) | Cover - rear bumper A | T1: | 7.5 (0.76, 5.5) |
(3) | Bracket - rear bumper corner | (8) | Cover - rear bumper B (without rear fog light) | T2: | 70 (7.14, 51.6) |
(4) | Rear fog light ASSY | (9) | Bumper face - rear | ||
(5) | Reflex reflector | (10) | Cover - rear bumper side | ||

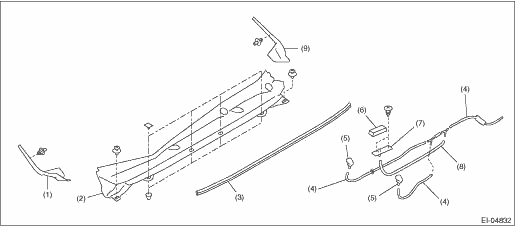

8. COWL PANEL

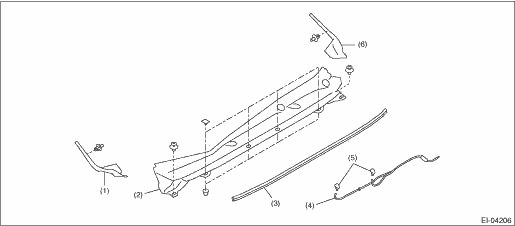

• Models without EyeSight
(1) | Cowl panel - side RH | (3) | Seal - front panel | (5) | Nozzle - windshield washer |
(2) | Cowl panel ASSY | (4) | Hose - windshield washer | (6) | Cowl panel - side LH |
• Models with EyeSight
(1) | Cowl panel - side RH | (4) | Hose - windshield washer | (7) | Joint - washer hose |
(2) | Cowl panel ASSY | (5) | Nozzle - windshield washer | (8) | Hose - wiper arm |
(3) | Seal - front panel | (6) | Cover - joint | (9) | Cowl panel - side LH |

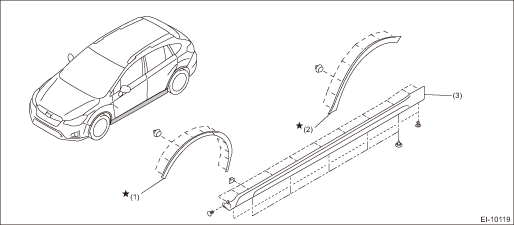

9. SIDE GARNISH
(1) | Garnish ASSY - fender | (2) | Garnish ASSY - rear quarter | (3) | Garnish ASSY - side sill |

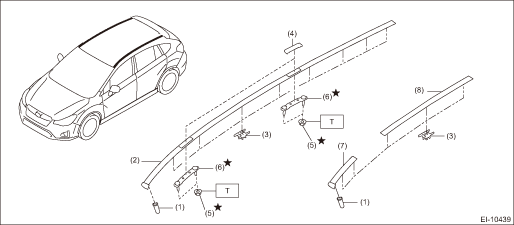

10. ROOF MOLDING
(1) | Rivet | (5) | Flange nut | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Molding - roof | (6) | Bracket - molding roof | T: | 7.5 (0.76, 5.5) |
(3) | Fastener | (7) | Molding - roof front (model with roof rail) | ||
(4) | Cap - molding | (8) | Molding - roof rear (model with roof rail) | ||

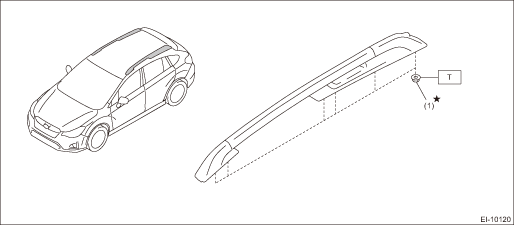

11. ROOF RAIL
(1) | Self-locking nut | Tightening torque: N·m (kgf-m, ft-lb) | |||
T: | 7.5 (0.76, 5.5) | ||||

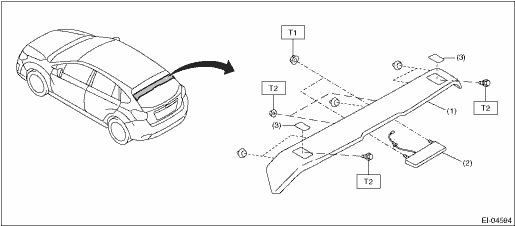

12. ROOF SPOILER
(1) | Roof spoiler | (3) | Cap | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | High-mounted stop light ASSY | T1: | 4.5 (0.46, 3.3) | ||
T2: | 7.5 (0.76, 5.5) | ||||

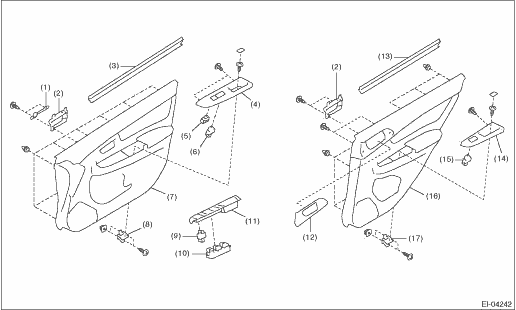

13. DOOR TRIM
(1) | Plate | (7) | Trim panel - front door | (13) | Weather strip - door rear INN |
(2) | Remote ASSY - door | (8) | Bracket - door trim front | (14) | Panel - power window sub-switch rear |
(3) | Weather strip - door front INN | (9) | Switch - door mirror | (15) | Switch - power window sub rear |
(4) | Panel - power window sub-switch front | (10) | Switch - power window main | (16) | Trim panel - rear door |
(5) | Switch - door lock sub | (11) | Panel - power window main switch | (17) | Bracket - door trim rear |
(6) | Switch - power window sub front | (12) | Cover - remote rear door |

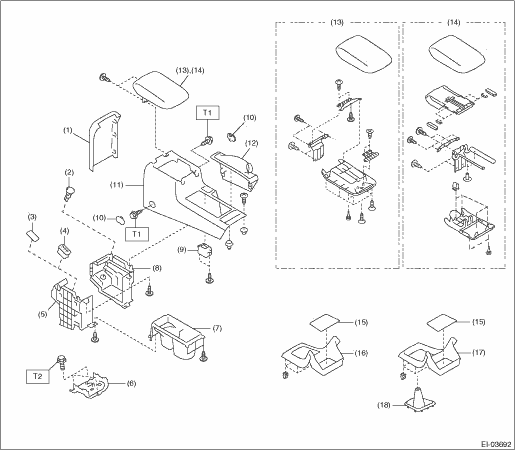

14. CONSOLE BOX
(1) | Console box, rear | (9) | Switch - seat heater | (17) | Cover front (MT model) |
(2) | Accessory socket | (10) | Cap - console box | (18) | Boot - shift lever (MT model) |
(3) | Cap | (11) | Console box | ||
(4) | AUX unit | (12) | Boot - parking brake | Tightening torque: N·m (kgf-m, ft-lb) | |
(5) | Pocket console box RH | (13) | Lid ASSY - console box (fixed type) | T1: | 6.5 (0.66, 4.8) |
(6) | Bracket - console box | (14) | Lid ASSY - console box (sliding type) | T2: | 18 (1.84, 13.3) |
(7) | Cup holder | (15) | Mat | ||
(8) | Pocket console box LH | (16) | Cover front (CVT model) | ||
15. INSTRUMENT PANEL

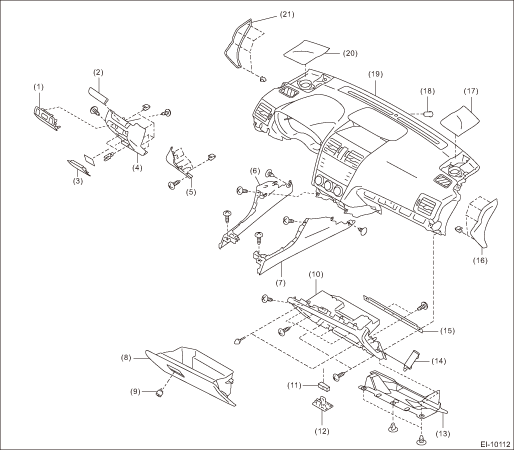

(1) | Panel - switch | (8) | Pocket ASSY | (15) | Reinforcement - passenger |
(2) | Ornament - panel ASSY driver | (9) | Key cylinder - pocket | (16) | Cover - instrument panel side RH |
(3) | Lid ASSY - fuse box | (10) | Back panel - pocket | (17) | Grille speaker side RH |
(4) | Cover ASSY - instrument panel LWR driver OUT | (11) | Light - pocket | (18) | Cap - guide pin |
(5) | Cover ASSY - instrument panel LWR driver INN | (12) | Holder | (19) | Panel COMPL - instrument |
(6) | Panel center LWR LH | (13) | Under cover ASSY - passenger | (20) | Grille speaker side LH |
(7) | Panel center LWR RH | (14) | Damper COMPL - pocket | (21) | Cover - instrument panel side LH |

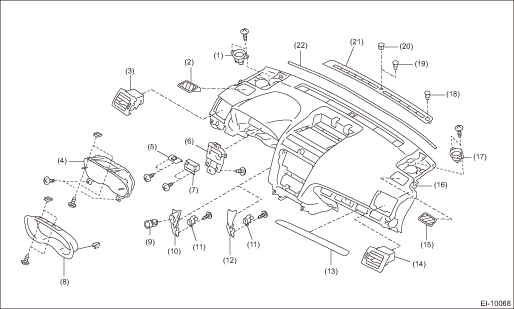

(1) | Speaker ASSY - tweeter LH | (9) | Switch - push button start | (17) | Speaker ASSY - tweeter RH |
(2) | Grille defroster - front LH | (10) | Panel - switch | (18) | Sensor - rain |
(3) | Grille ASSY - ventilation LH | (11) | Case - sensor | (19) | Sunload sensor |
(4) | Combination meter ASSY | (12) | Cover - switch starter | (20) | Cap |
(5) | Antenna ASSY - GPS | (13) | Ornament - panel ASSY passenger | (21) | Grille front defroster |
(6) | Reinforcement - combination meter | (14) | Grille ASSY - ventilation RH | (22) | Cushion |
(7) | SUB antenna ASSY - telematics | (15) | Grille defroster - front RH | ||
(8) | Visor - combination meter | (16) | Panel COMPL - instrument |

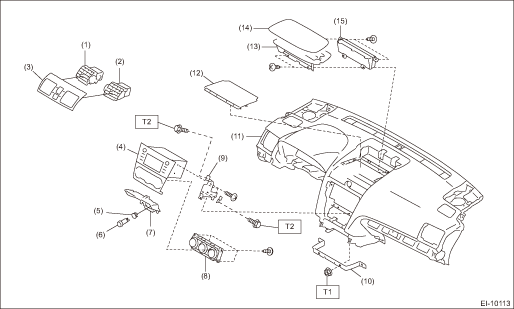

(1) | Grille ASSY - CTR ventilation LH | (8) | Heater control ASSY | (15) | Multi-function display ASSY |
(2) | Grille ASSY - CTR ventilation RH | (9) | Bracket - audio | ||
(3) | Panel center ASSY | (10) | Reinforcement - CTR LWR | Tightening torque: N·m (kgf-m, ft-lb) | |
(4) | Audio ASSY | (11) | Panel COMPL - instrument | T1: | 7 (0.71, 5.2) |
(5) | Cap | (12) | Cover center UPR | T2: | 7.5 (0.76, 5.5) |
(6) | Socket ASSY | (13) | Panel - display LWR | ||
(7) | Back panel - center pocket | (14) | Panel - display UPR | ||

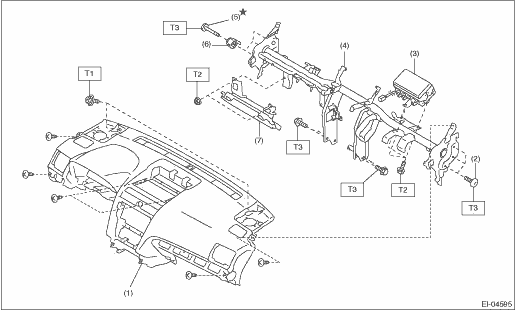

(1) | Panel COMPL - instrument | (5) | TORX® bolt (M8 ? 57) | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | TORX® bolt (M8 ? 37) | (6) | Adjuster - clip space | T1: | 7 (0.71, 5.2) |
(3) | Passenger’s airbag module | (7) | Knee airbag module | T2: | 7.5 (0.76, 5.5) |
(4) | Beam COMPL - steering | T3: | 25 (2.55, 18.4) | ||

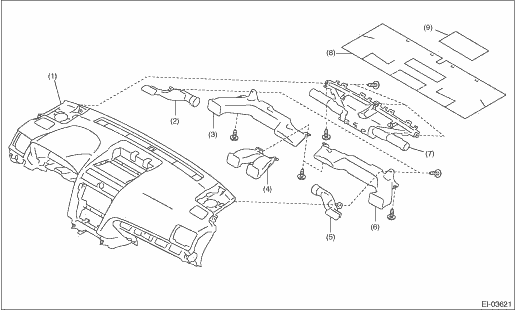

(1) | Panel COMPL - instrument | (4) | Duct - center vent | (7) | Nozzle - front defroster |
(2) | Duct - side defroster LH | (5) | Duct - side defroster RH | (8) | Insulator - instrument |
(3) | Duct - side ventilation LH | (6) | Duct - side ventilation RH | (9) | Insulator - airbag |

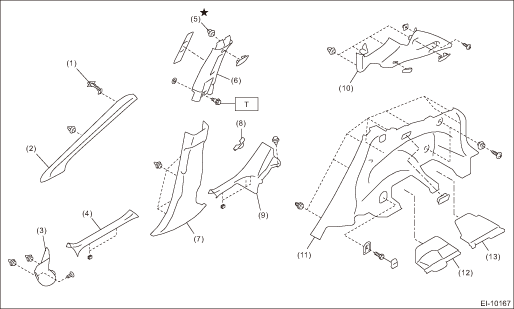

16. INNER TRIM
(1) | Tether clip | (7) | Trim panel - center pillar LWR | (13) | Lid upper rear |
(2) | Trim panel - front pillar UPR | (8) | Cover - catcher | ||
(3) | Cover side sill - front | (9) | Cover side sill - rear INN | Tightening torque: N·m (kgf-m, ft-lb) | |
(4) | Cover side sill - front INN | (10) | Trim panel - rear quarter UPR | T: | 7.5 (0.76, 5.5) |
(5) | Clip | (11) | Trim panel - rear apron | ||
(6) | Trim panel - center pillar UPR | (12) | Cap - rear strut | ||

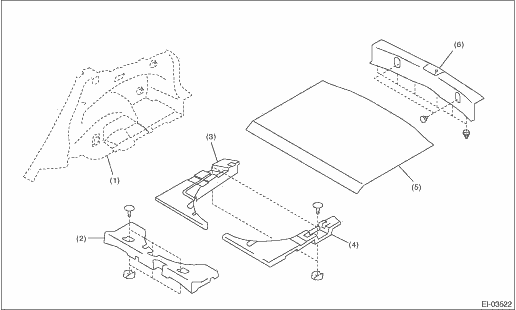

(1) |
