EXHAUST(H4DO) > Front Exhaust Pipe

REMOVAL

CAUTION:

Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.

1. Disconnect the ground cable from battery. NOTE">

2. Lift up the vehicle.

3. Remove the under cover. Front Under Cover > REMOVAL">

4. Disconnect the front oxygen (A/F) sensor connector (A) and rear oxygen sensor connector (B) and remove the clip (C) fastening the harness.

5. Remove the bolts, springs, and nuts securing the rear exhaust pipe to the center exhaust pipe.

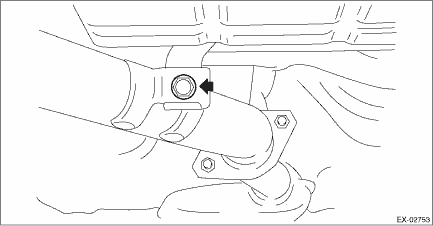

6. Remove the bolt which holds center exhaust pipe to hanger bracket.

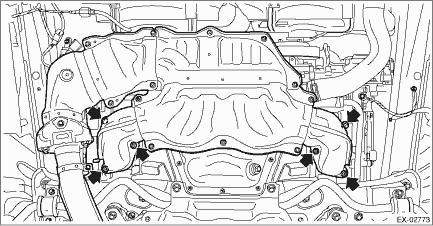

7. Remove the front exhaust pipe and center exhaust pipe from vehicle as a unit.

CAUTION:

The front exhaust pipe and center exhaust pipe are very heavy. Be careful not to drop the exhaust pipes when removing.

After removing the front exhaust pipe and center exhaust pipe, do not apply excessive pulling force on the rear exhaust pipe.

Assembly
EXHAUST(H4DO) > Front Exhaust PipeASSEMBLY1. Install each cover to the front exhaust pipe.Tightening torque:13 N·m (1.3 kgf-m, 9.6 ft-lb)(A)Front exhaust pipe upper cover(E)Front catalytic c ...

Disassembly
EXHAUST(H4DO) > Front Exhaust PipeDISASSEMBLY1. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe. Front Oxygen (A/F) Sensor > REMOVAL"> Rear Oxygen S ...
