Subaru Crosstrek Service Manual: Removal

SECURITY AND LOCKS > Rear Door Latch and Door Lock Actuator Assembly

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the trim panel - rear door. Door Trim > REMOVAL">

3. Remove the sealing cover - rear door. Rear Sealing Cover > REMOVAL">

4. Remove the glass assembly - rear door. Rear Door Glass > REMOVAL">

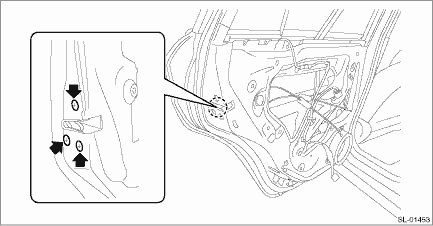

5. Remove the screws to remove the latch & actuator assembly - rear.

CAUTION:

Do not re-use the screws. Always replace with a new part.

Inspection
SECURITY AND LOCKS > Rear Door Latch and Door Lock Actuator AssemblyINSPECTION1. LATCHCheck if the latch operates normally.If the cable is faulty, replace the latch & actuator assembly - rear.2 ...

Installation
SECURITY AND LOCKS > Rear Door Latch and Door Lock Actuator AssemblyINSTALLATION1. Before installation, check the following items.• Lever is free from deformation.• Grease is applied su ...
