Subaru Crosstrek Service Manual: Removal

SECURITY AND LOCKS > Keyless Entry Control Module

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the trim panel - rear apron LH. Rear Quarter Trim > REMOVAL">

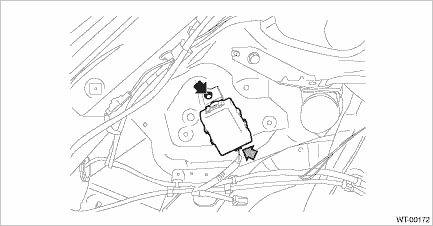

3. Remove the keyless entry control module.

(1) Disconnect the connector.

(2) Remove the bolt and then remove the keyless entry control module.

Installation
SECURITY AND LOCKS > Keyless Entry Control ModuleINSTALLATIONInstall each part in the reverse order of removal.Tightening torque:Keyless entry control module: 13 N·m (1.33 kgf-m, 9.6 ft-lb) ...
