Subaru Crosstrek Service Manual: Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Heater Core

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Using the refrigerant recovery system, discharge refrigerant. Refrigerant Recovery Procedure > PROCEDURE">

2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

3. Drain the coolant from the radiator. Engine Coolant > REPLACEMENT">

4. Remove the heater and cooling unit assembly. Heater and Cooling Unit > REMOVAL">

5. Remove the heater core.

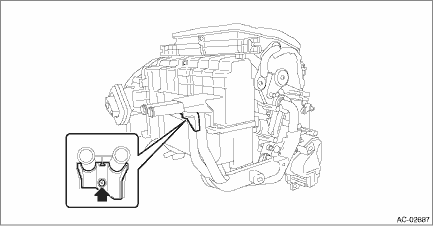

(1) Remove the screw and detach the clamp - pipe.

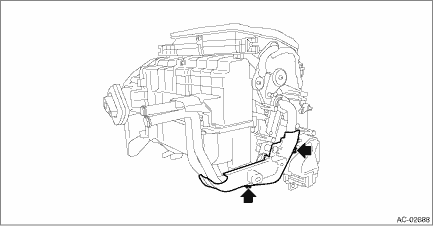

(2) Remove the screws and detach the cover - heater pipe.

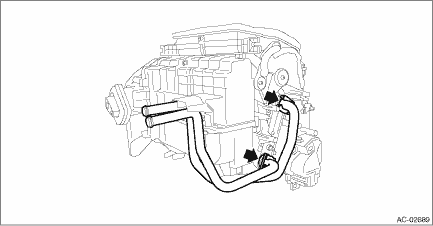

(3) Remove the clamp, and remove the pipe - inlet and outlet.

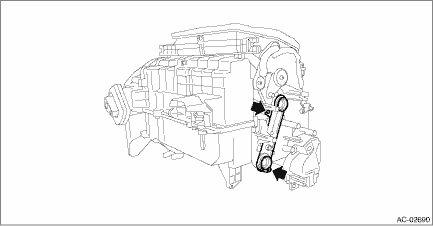

(4) Remove the screws and detach the plate - heater core.

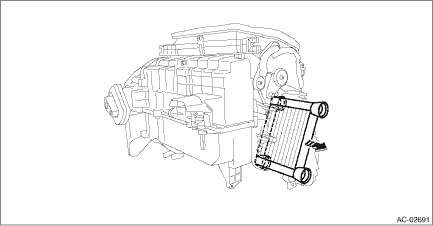

(5) Pull out the heater core from the case - heater unit.
