Subaru Crosstrek Service Manual: Disassembly

Subaru Crosstrek Service Manual / Exhaust(h4do) / Front exhaust pipe / Disassembly

EXHAUST(H4DO) > Front Exhaust Pipe

DISASSEMBLY

1. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe. Front Oxygen (A/F) Sensor > REMOVAL"> Rear Oxygen Sensor > REMOVAL">

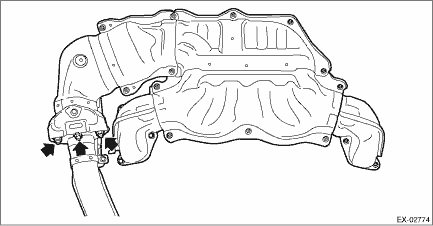

2. Remove the center exhaust pipe from the front exhaust pipe.

3. Remove each cover from the front exhaust pipe.

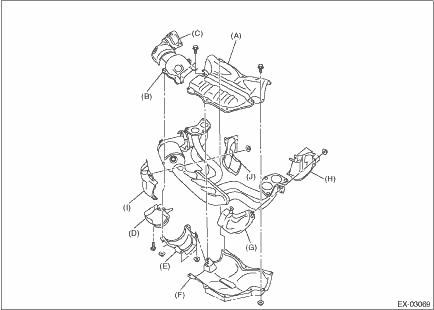

(A)	Front exhaust pipe upper cover	(E)	Front catalytic converter lower cover LH	(H)	Front exhaust pipe side cover LH (rear)
(B)	Front catalytic converter upper cover LH	(F)	Front exhaust pipe lower cover	(I)	Front exhaust pipe side cover RH (front)
(C)	Front catalytic converter upper cover RH	(G)	Front exhaust pipe side cover LH (front)	(J)	Front exhaust pipe side cover RH (rear)
(D)	Front catalytic converter lower cover RH

Removal

EXHAUST(H4DO) > Front Exhaust PipeREMOVALCAUTION:Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.1. Disconnect the ground cable from battery. NOTE& ...

Inspection

EXHAUST(H4DO) > Front Exhaust PipeINSPECTION1. Check the connections and welded parts for exhaust leaks.2. Make sure there are no holes or rusting. ...
