Subaru Crosstrek Service Manual: Installation

AIRBAG SYSTEM > Roll Connector

INSTALLATION

CAUTION:

If the steering wheel and steering angle sensor (steering roll connector) are removed, be sure to perform the following operations.

Align the center position of the steering roll connector.

Perform the neutral position setting of the steering angle sensor.

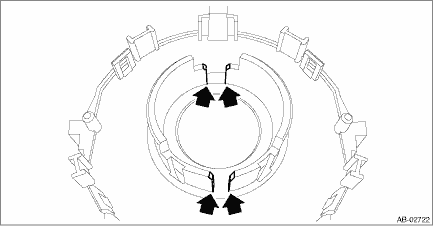

1. Before attaching a new roll connector, apply a thin coat of grease contained in the connector onto the areas shown by the arrows.

2. Install each part in the reverse order of removal.

3. Align the center position of the steering roll connector. Roll Connector > ADJUSTMENT">

4. Install the steering wheel. Steering Wheel > INSTALLATION">

5. Install the driver’s airbag module. Driver’s Airbag Module > INSTALLATION">

6. Connect the battery ground terminal. NOTE">

7. Perform the neutral position setting of the steering angle sensor. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT">

Inspection
AIRBAG SYSTEM > Roll ConnectorINSPECTION1. VISUAL INSPECTIONCheck for the following, and replace the damaged parts with new parts.• Combination switch is cracked or deformed.• Roll conn ...
