SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass Lid

ADJUSTMENT

1. Adjust the height of the lid assembly - sunroof and the roof panel.

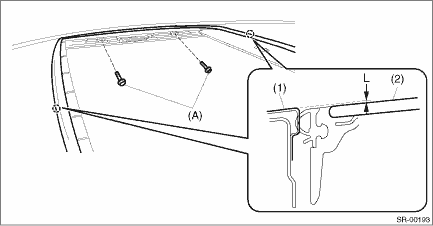

2. Loosen the lid assembly - sunroof mounting bolts (A), and then adjust the height by moving the lid assembly - sunroof side.

Lid assembly - sunroof height difference L:

Lid assembly - sunroof to Roof panel: 0.7±1.0 mm (0.03±0.04 in)

(1)

Roof panel

(2)

Lid ASSY - sunroof

Tightening torque:

4.5 N·m (0.46 kgf-m, 3.3 ft-lb)

Glass lid
...

Forced drive
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass LidFORCED DRIVEIf the lid assembly - sunroof does not operate or the motor assembly is not supplied with power, move the lid assembly - sunroof using ...
