Subaru Crosstrek Service Manual: Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Front Oxygen (A/F) Sensor

INSPECTION

1. Check that the front oxygen (A/F) sensor has no deformation, cracks or other damages.

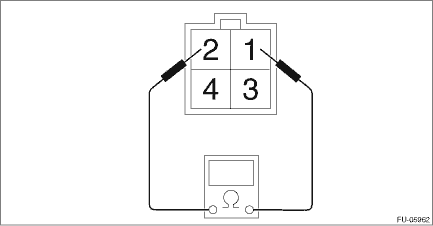

2. Measure the resistance between front oxygen (A/F) sensor terminals.

Terminal No.

Standard

1 and 2

2.0+0.42 −0.2 ? (when 20°C (68°F))

Front oxygen (a/f) sensor
...

Removal
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Front Oxygen (A/F) SensorREMOVAL1. Disconnect the ground cable from battery.2. Remove the radiator sub fan and fan motor assembly. Radiator Sub Fan and Fan Mo ...
