POWER ASSISTED SYSTEM (POWER STEERING) (DIAGNOSTICS) > Electrical Component Location
LOCATION

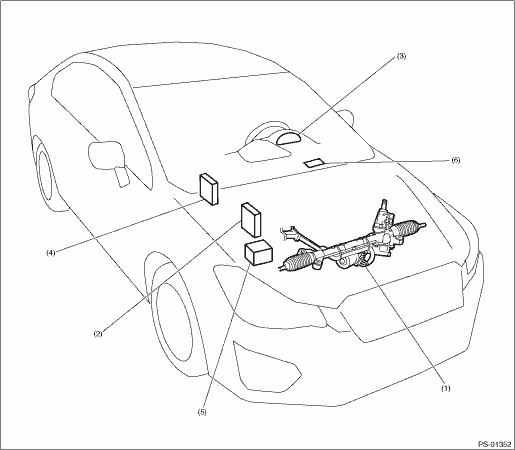

(1) | Steering gearbox | (3) | STEERING warning light | (5) | VDCCM&H/U |
(2) | Power steering control module | (4) | Engine control module (ECM) | (6) | Data link connector (for Subaru Select Monitor) |
