Subaru Crosstrek Service Manual: Electrical component location Location

INSTRUMENTATION/DRIVER INFO (DIAGNOSTICS) > Electrical Component Location

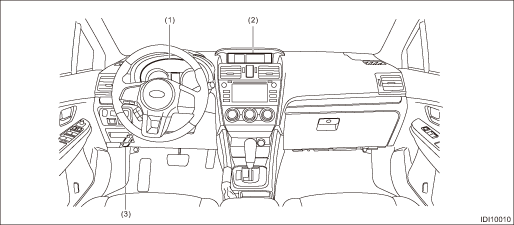

LOCATION

(1)

Combination meter

(2)

MFD

(3)

Data link connector

Control module i/o signal Electrical specification
INSTRUMENTATION/DRIVER INFO (DIAGNOSTICS) > Control Module I/O SignalELECTRICAL SPECIFICATION• Combination meterTerminal No.ContentTerminal No.Content1Security indicator27Ambient sensor2Charg ...

List of diagnostic trouble code (dtc) List
INSTRUMENTATION/DRIVER INFO (DIAGNOSTICS) > List of Diagnostic Trouble Code (DTC)LISTDTCItemContentReferenceU0073CONTROL MODULE COMMUNICATION BUS OFFDetected when CAN line abnormality is detected. ...
