INTAKE (INDUCTION)(H4DO) > General Description

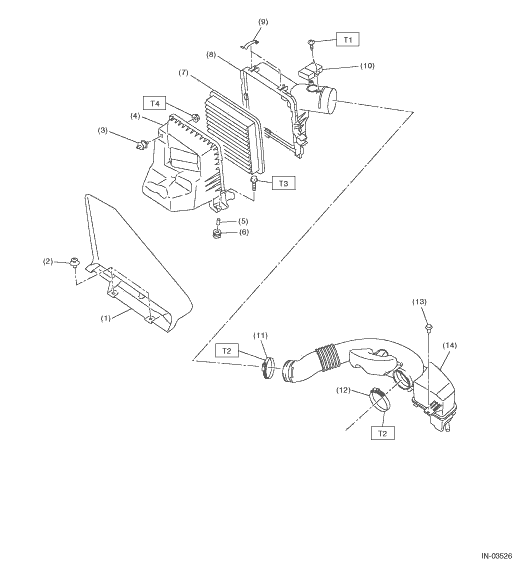

COMPONENT

(1)

Air intake duct

(8)

Air cleaner case (rear)

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Clip

(9)

Clip

T1:

1 (0.1, 0.7)

(3)

Cushion

(10)

Mass air flow and intake air temperature sensor

T2:

3 (0.3, 2.2)

(4)

Air cleaner case (front)

(11)

Clamp

T3:

6 (0.6, 4.4)

(5)

Spacer

(12)

Clamp

T4:

7.5 (0.8, 5.5)

(6)

Cushion

(13)

Clip

(7)

Air cleaner element

(14)

Air intake boot
