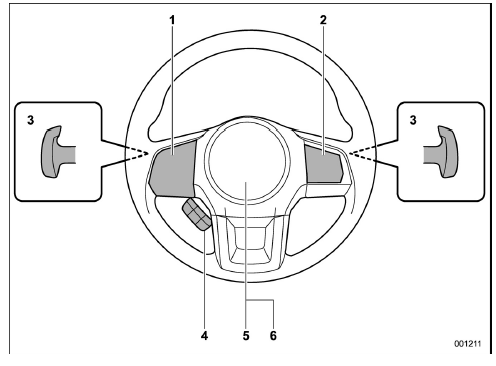

Subaru Crosstrek Owners Manual: Steering wheel
- Audio control switches (page 5-62)/ Talk switch for voice command system (page 5-80)/Hands-free phone switches
- Cruise control
- Shift paddle
- Multi information display control switches
- SRS airbag
- Horn
Instrument panel
Illumination brightness control
Vehicle Dynamics Control OFF switch
Combination meter
Information display (page 3-32)/Multi
function display
Hazard warning flasher switch (models
wi ...
Light control and wiper control levers/switches
Windshield wiper
Mist
Windshield washer
Rear window wiper and washer switch
Wiper intermittent time control switch
Wiper control lever
Light control switch
Fog light switch
Head ...
