Subaru Crosstrek Service Manual: Security system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Security system Wiring diagram

WIRING SYSTEM > Security System

WIRING DIAGRAM

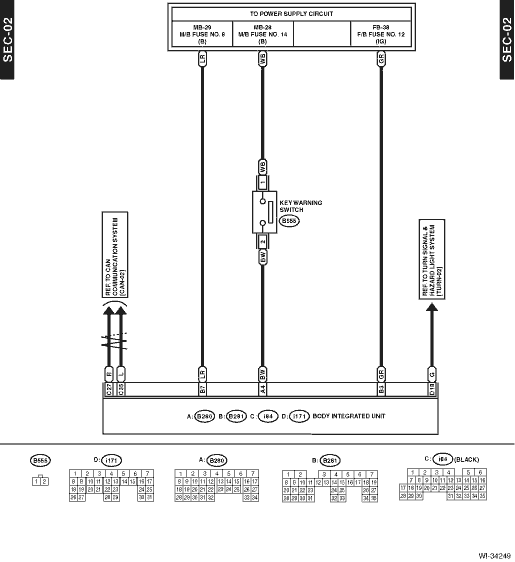

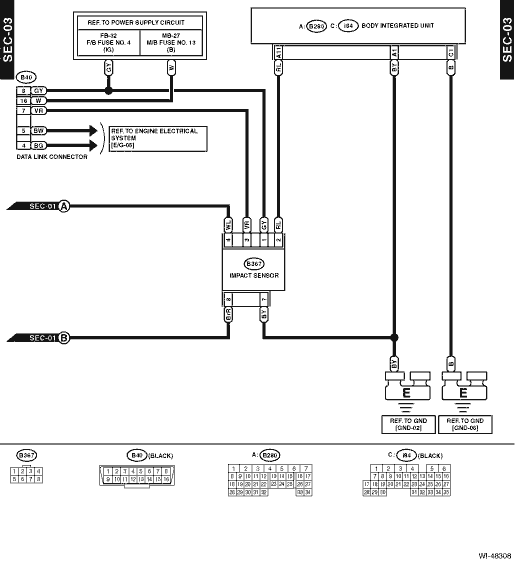

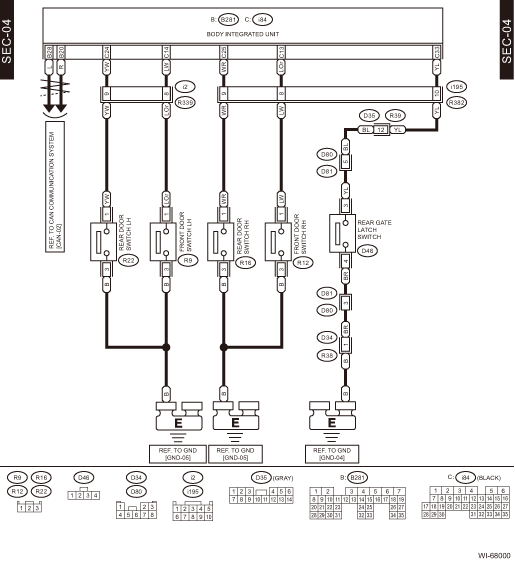

1. WITHOUT PUSH BUTTON START

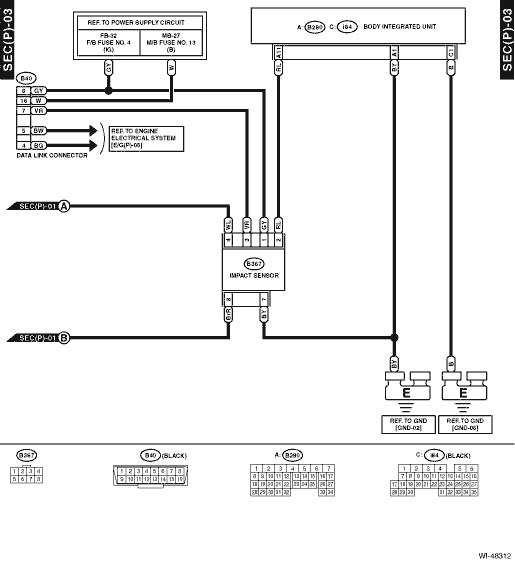

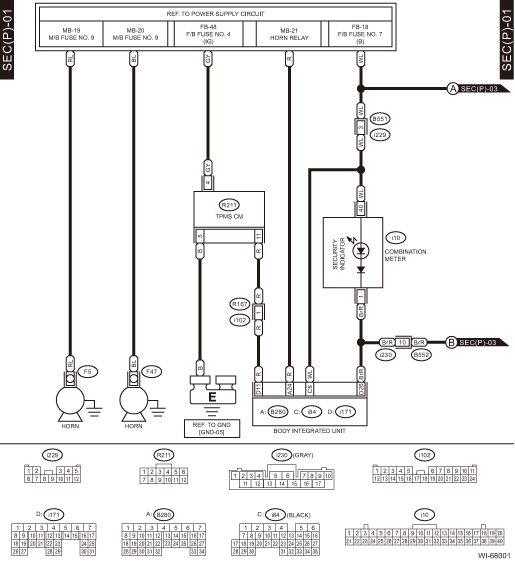

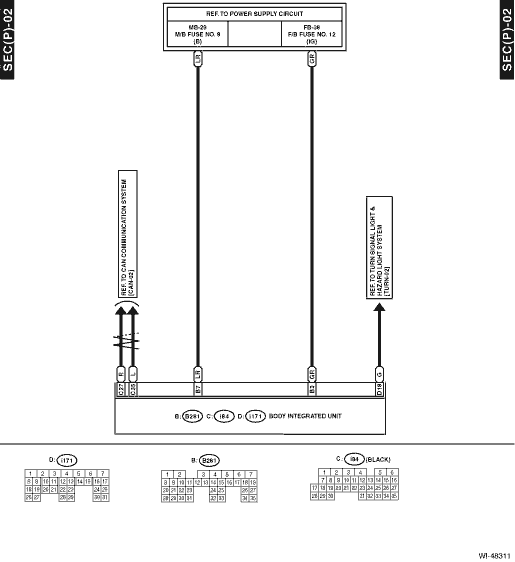

2. WITH PUSH BUTTON START
