Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Wiper and washer systems / Front wiper arm / Removal

WIPER AND WASHER SYSTEMS > Front Wiper Arm

REMOVAL

1. MODELS WITHOUT EyeSight

1. Remove the cover - windshield wiper arm.

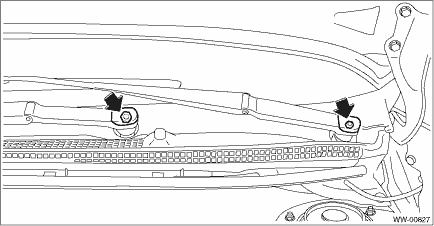

2. Remove the nuts, and remove the arm assembly - windshield wiper.

2. MODELS WITH EyeSight

1. Remove the cover - windshield wiper arm.

2. Remove the arm assembly - windshield wiper.

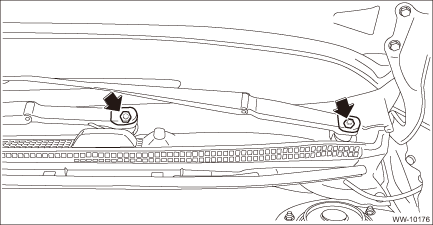

(1) Remove the nuts, and remove the arm assembly - windshield wiper.

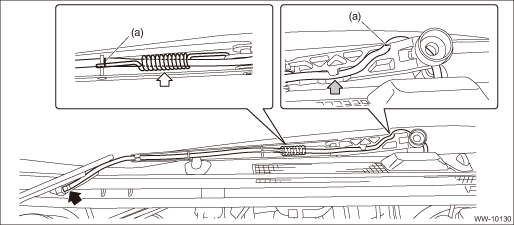

(2) Add the alignment mark (a), and remove the hose from the arm assembly - windshield wiper assistor.

3. When removing the hose from the joint - washer hose, refer to the removal of “Nozzle wiper arm washer & hose”. Front Washer Nozzle and Hose > REMOVAL">

CAUTION:

Do not remove the nozzle - wiper arm washer from the arm assembly - windshield wiper assistor.

If nozzle replacement is required, replace the arm assembly - windshield wiper assistor as a unit.

Adjustment

WIPER AND WASHER SYSTEMS > Front Wiper ArmADJUSTMENT1. Operate the windshield wiper once.2. Check that the wiper blade is aligned with the point mark.3. Make sure that there is a gap of 1 mm (0.04 ...

Installation

WIPER AND WASHER SYSTEMS > Front Wiper ArmINSTALLATION1. MODELS WITHOUT EyeSight1. Install the arm assembly - windshield wiper.(1) Assemble the arm assembly - windshield wiper so that the blade ass ...
