Subaru Crosstrek Service Manual: Removal

VEHICLE DYNAMICS CONTROL (VDC) > Front ABS Wheel Speed Sensor

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Lift up the vehicle, and then remove the front wheels.

3. Remove the front ABS wheel speed sensor.

CAUTION:

Be careful not to damage the sensor.

Do not apply excessive force to the sensor harness.

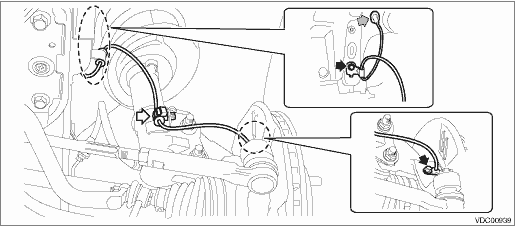

Leave the sensor harness clamp (white arrow) on the vehicle side.

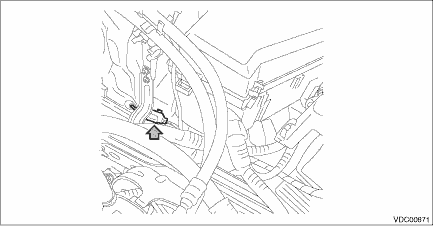

(1) Disconnect the connector of the front ABS wheel speed sensor in the engine compartment.

(2) Remove each harness clip and grommet.

(3) Remove the bolts, and remove the front ABS wheel speed sensor from the housing assembly - front axle.

Inspection
VEHICLE DYNAMICS CONTROL (VDC) > Front ABS Wheel Speed SensorINSPECTION1. CHECK WITH SUBARU SELECT MONITOR1. Connect the Subaru Select Monitor to data link connector.NOTE:For detailed operation pro ...

Installation
VEHICLE DYNAMICS CONTROL (VDC) > Front ABS Wheel Speed SensorINSTALLATIONCAUTION:• Be careful not to damage the sensor.• Do not apply excessive force to the sensor harness.Install each ...
