STARTING/CHARGING SYSTEMS(H4DO) > Battery
REMOVAL

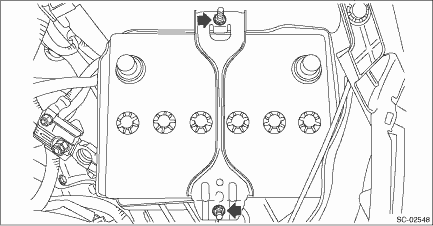

1. Disconnect the positive (+) terminal after disconnecting the negative (−) terminal of battery.
2. Remove the battery cable holder from the battery rod.
3. Remove the flange nut from battery rod and remove battery holder.
4. Remove the battery.
Installation
STARTING/CHARGING SYSTEMS(H4DO) > BatteryINSTALLATIONCAUTION:After the battery is installed, initial diagnosis of the electronic throttle control is performed. Wait for 10 seconds or more after tur ...
