Subaru Crosstrek Service Manual: Removal
SECURITY AND LOCKS > Rear Lock Button
REMOVAL
NOTE:
The rear lock button is integrated into the rear gate opener button.
1. Disconnect the ground cable from battery. NOTE">
2. Remove the garnish assembly - rear gate. Rear Gate Garnish > REMOVAL">

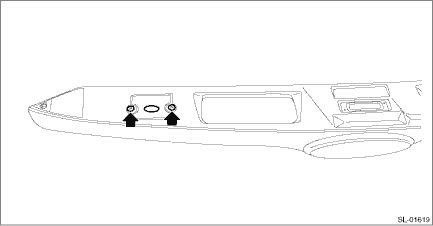

3. Remove the screws and remove the rear lock button.

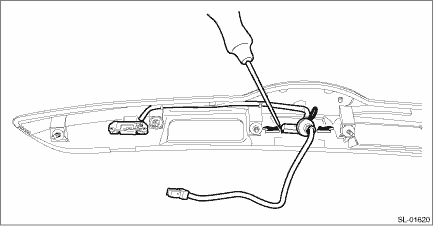

4. Release the locks at both ends of the button - opener rear gate by pushing them with a flat tip screwdriver, remove the button - opener rear gate and remove the integrated harness.
Inspection
SECURITY AND LOCKS > Rear Lock ButtonINSPECTION1. Using the Subaru Select Monitor, display «Rear gate/Trunk UNLOCK output» from «Data monitor».2. Check if the display changes when the rear lock ...
Installation
SECURITY AND LOCKS > Rear Lock ButtonINSTALLATIONCAUTION:Make sure that the harness grommet is securely installed.If not properly installed, this may cause leaks.Install each part in the reverse or ...
