Subaru Crosstrek Service Manual: Removal

POWER ASSISTED SYSTEM (POWER STEERING) > Steering Wheel

REMOVAL

CAUTION:

Before handling the airbag system components, always refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Set the tire to the straight-ahead position.

2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

3. Remove the driver’s airbag module. Driver’s Airbag Module > REMOVAL">

4. Remove the steering wheel.

CAUTION:

Always use the steering wheel puller for removal to avoid deforming the steering wheel.

If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.

(1) Disconnect the connector and remove the nut.

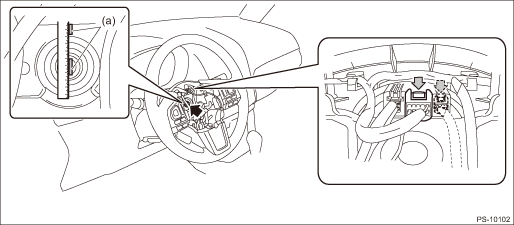

(2) Put an alignment mark (a) using a ruler as shown in the figure, and remove the steering wheel.

Preparation tool:

Steering wheel puller

Assembly
