Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Manual transmission and differential(5mt) / Transfer driven gear / Removal

MANUAL TRANSMISSION AND DIFFERENTIAL(5MT) > Transfer Driven Gear

REMOVAL

1. Remove the manual transmission assembly from the vehicle. Manual Transmission Assembly > REMOVAL">

2. Remove the back-up light switch and the neutral position switch. Switches and Harness > REMOVAL">

3. Remove the transfer case together with the extension case assembly. Transfer Case and Extension Case Assembly > REMOVAL">

4. Remove the extension case assembly.

5. Remove the transfer driven gear.

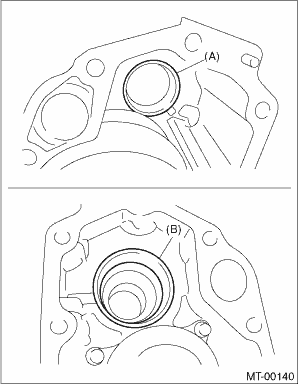

6. Remove the taper roller bearing outer race.

(A)	Taper roller bearing (transfer case side) outer race
(B)	Taper roller bearing (extension case side) outer race
