LIGHTING SYSTEM > Hazard Switch

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the center grille assembly. Air Vent Grille > REMOVAL">

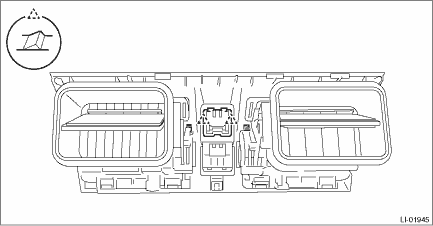

3. Release the claws, and remove the switch - hazard from the center grille assembly.

Inspection
LIGHTING SYSTEM > Hazard SwitchINSPECTION1. Measure the resistance between connector terminals.Preparation tool:Circuit testerTerminal No.Inspection conditionsStandard2 — 3Switch OFF1 M? or moreS ...

Installation
LIGHTING SYSTEM > Hazard SwitchINSTALLATIONCAUTION:After installing the center grille assembly, check that the air vent grille of the center grille assembly is inserted correctly into the air vent ...
