LIGHTING SYSTEM > Glove Box Light

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the pocket assembly.

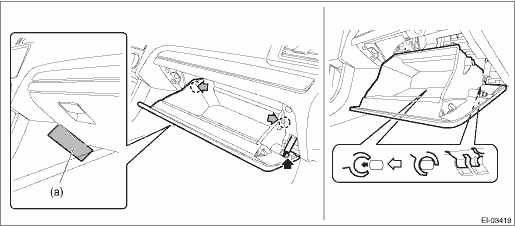

(1) Attach the protective tape (a) to the panel center LWR.

(2) Remove the damper COMPL - pocket.

(3) Release the stoppers and remove the pocket assembly by pulling it toward you.

3. Remove the light - pocket.

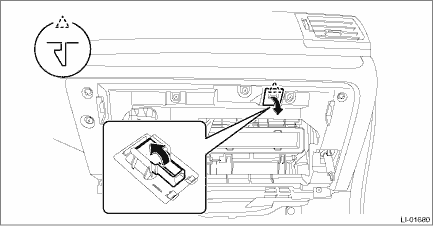

(1) Release the claws and remove the light - pocket cover from the back panel - pocket.

(2) Disconnect the connector and remove the light - pocket from the cover.

Inspection
LIGHTING SYSTEM > Glove Box LightINSPECTION1. Install the light to test if it illuminates normally.2. If it fails to illuminate normally, replace the light - pocket with a new part.NOTE:Since LED ( ...

Installation
LIGHTING SYSTEM > Glove Box LightINSTALLATIONInstall each part in the reverse order of removal. ...
