INSTRUMENTATION/DRIVER INFO > Combination Meter
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Release the lock, tilt the steering column to the lowest end and fully extend the column by the telescopic system.

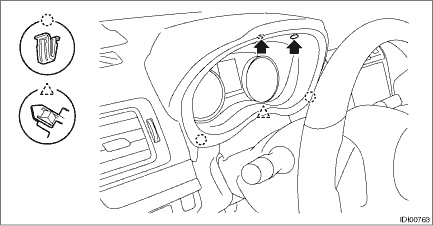

3. Release the screws, clips and claws, and remove the visor - combination meter.
4. Remove the combination meter assembly.
CAUTION:
• Be careful not to damage the meter or instrument panel.
• Pay particular attention to avoid damaging the meter glass.

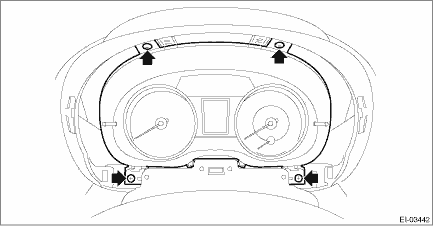

(1) Remove the screws.

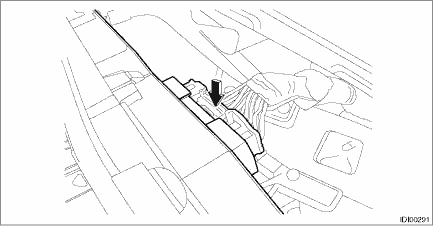

(2) Pull the combination meter assembly toward you and disconnect the connector.
