Subaru Crosstrek Service Manual: Removal
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Rear Oxygen Sensor
REMOVAL
1. Disconnect the ground cable from battery.
2. Lift up the vehicle.
3. Remove the under cover. Front Under Cover > REMOVAL">
4. Disconnect the rear oxygen sensor connector.

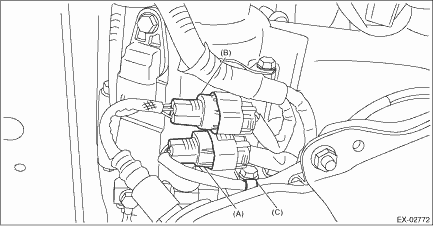

(A) | Front oxygen (A/F) sensor connector | (B) | Rear oxygen sensor connector | (C) | Clip |
5. Apply spray-type lubricant to the threaded portion of rear oxygen sensor, and leave it for one minute or more.

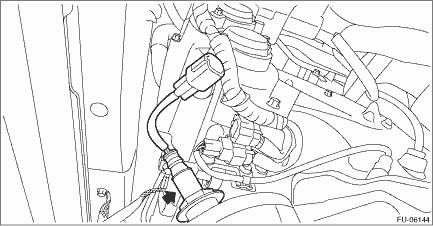

6. Remove the rear oxygen sensor.
CAUTION:
When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Rear Oxygen SensorINSPECTION1. Check that the rear oxygen sensor has no deformation, cracks or other damages.2. Measure the resistance between rear oxygen sens ...
Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Rear Oxygen SensorINSTALLATIONCAUTION:If lubricant is spilt over the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.1. Befor ...
