Subaru Crosstrek Service Manual: Removal
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Knock Sensor
REMOVAL
1. Disconnect the ground cable from battery.

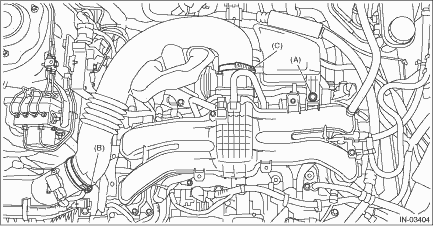

2. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

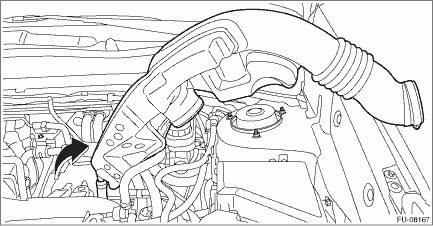

3. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move the air intake boot aside so that it does not interfere with the work.

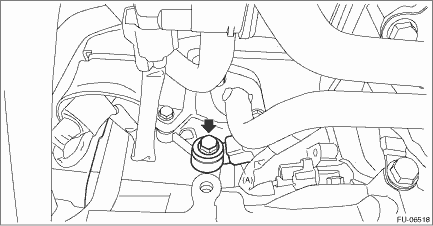

4. Disconnect the connector (A) from the knock sensor, and remove the knock sensor from the cylinder block.
Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Knock SensorINSPECTION1. Check that the knock sensor has no deformation, cracks or other damages.2. Measure the resistance between knock sensor terminals.Termi ...
Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Knock SensorINSTALLATION1. Install the knock sensor to the cylinder block.NOTE:The knock sensor should be installed so that the center of the connector is posi ...
