Subaru Crosstrek Service Manual: Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Filler Pipe

REMOVAL

WARNING:

Place “NO OPEN FLAMES” signs near the working area.

CAUTION:

Be careful not to spill fuel.

1. Release the fuel pressure. Fuel > PROCEDURE">

2. Drain fuel. Fuel > PROCEDURE">

3. Disconnect the ground cable from battery.

4. Open the fuel filler lid and remove the fuel filler cap.

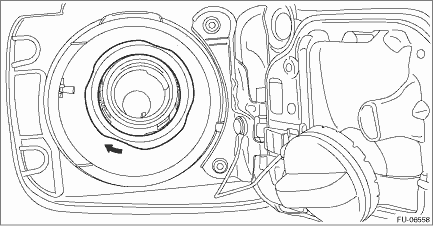

5. Turn the fuel filler pipe protector in the direction of the arrow to unlock and remove it.

6. Remove the rear sub frame assembly. Rear Sub Frame > REMOVAL">

7. Remove the rear mud guard RH. Mud Guard > REMOVAL">

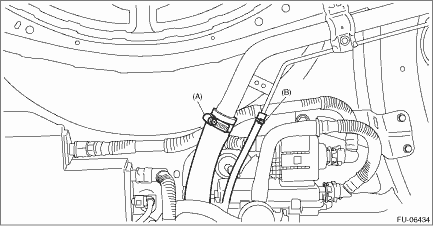

8. Disconnect the fuel filler hose (A) and evaporation hose (B) from the fuel filler pipe assembly.

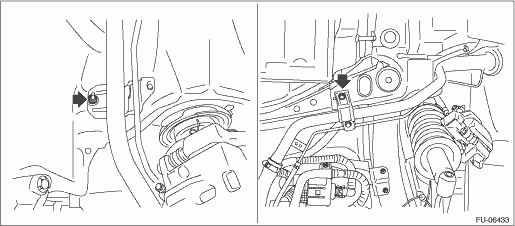

9. Remove the bolts and nuts which secure the fuel filler pipe assembly to the vehicle.

10. Remove the fuel filler pipe assembly from the underside of the vehicle.
