FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Crankshaft Position Sensor

REMOVAL

1. Disconnect the ground cable from battery.

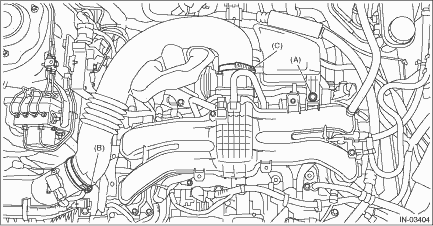

2. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

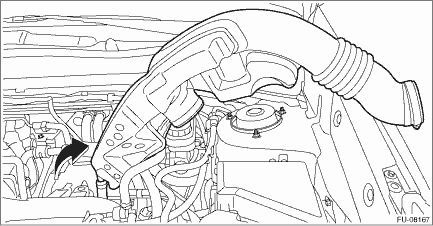

3. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move the air intake boot aside so that it does not interfere with the work.

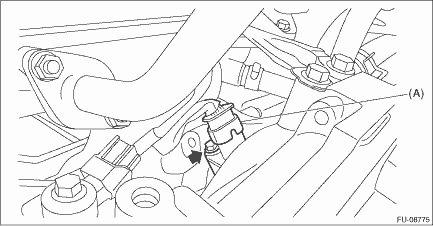

4. Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Crankshaft Position SensorINSPECTION1. CRANKSHAFT POSITION SENSOR (METHOD WITH OSCILLOSCOPE)1. Prepare an oscilloscope.2. Remove the glove box. Glove Box > ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Crankshaft Position SensorINSTALLATIONInstall in the reverse order of removal.Tightening torque:6.4 N·m (0.7 kgf-m, 4.7 ft-lb) ...
