Subaru Crosstrek Service Manual: Removal

EXTERIOR/INTERIOR TRIM > Sun Visor

REMOVAL

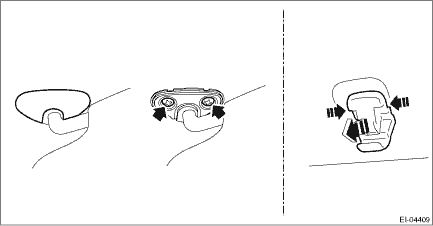

1. Remove the sun visor assembly.

(1) Remove the cap - sun visor, and then remove the screws.

(2) Disconnect the connector and remove the sun visor assembly.

2. Remove the hook - sun visor.

(1) Press both sides using a flat tip screwdriver.

(2) Remove the hook - sun visor by pulling it toward you.
