Subaru Crosstrek Service Manual: Removal

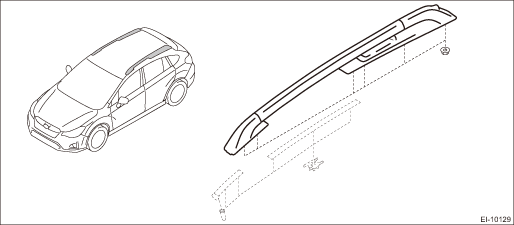

EXTERIOR/INTERIOR TRIM > Roof Rail
REMOVAL
1. Remove the trim panel - roof. Roof Trim > REMOVAL">
2. Remove the curtain airbag module. Curtain Airbag Module > REMOVAL">
CAUTION:
• Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">
• Be careful not to damage the curtain airbag module during removal.
3. Remove the six installing nuts.
Installation
EXTERIOR/INTERIOR TRIM > Roof RailINSTALLATIONCAUTION:When removing or installing the roof rail, be careful not to scratch the body panel with the stud bolt of roof rail.Install each part in the re ...
