Subaru Crosstrek Service Manual: Removal

EXTERIOR/INTERIOR TRIM > Rear Gate Trim

REMOVAL

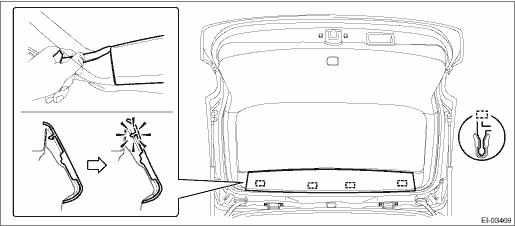

1. Remove the trim panel - rear gate UPR.

(1) Remove the claws on the trim edge.

(2) Release the claws in the center of trim, and remove the trim panel - rear gate UPR.

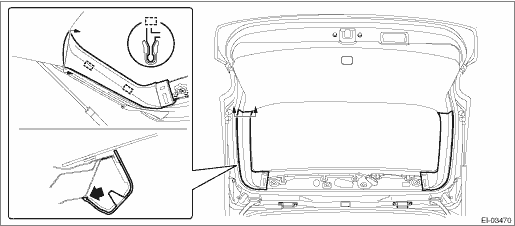

2. Remove the trim panel - rear gate pillar side.

(1) Release the claws.

(2) Remove the claws on the bottom of trim, and remove the trim panel - rear gate pillar side.

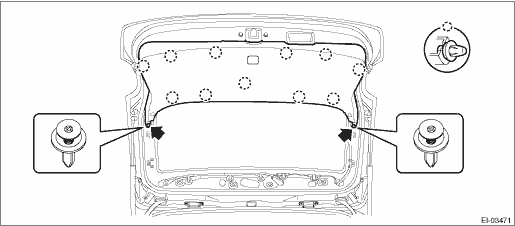

3. Remove the trim panel - rear gate LWR.

(1) Remove the clips on both ends.

(2) Release the clips, and remove the trim panel - rear gate LWR.

Installation
EXTERIOR/INTERIOR TRIM > Rear Gate TrimINSTALLATIONInstall each part in the reverse order of removal. ...
