EXTERIOR BODY PANELS > Front Sealing Cover
REMOVAL
1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">
2. Remove the trim panel - front door. Door Trim > REMOVAL">
3. Remove the sealing cover - front door.
CAUTION:
• Carefully remove the butyl tape. Excessive force will easily break the cover.
• If the sealing cover - front door gets broken, replace it with a new part.
• Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.

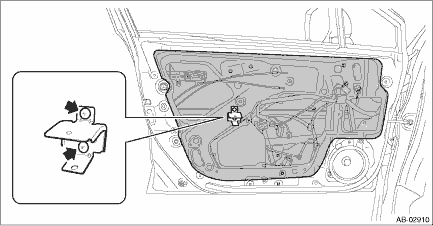

(1) Remove the screw to remove the bracket - door trim front.
(2) Carefully remove the butyl tape to remove the sealing cover - front door.
