Subaru Crosstrek Service Manual: Removal

BRAKE > Rear Brake Pad

REMOVAL

1. Lift up the vehicle, and then remove the rear wheels.

2. Remove the rear brake pad.

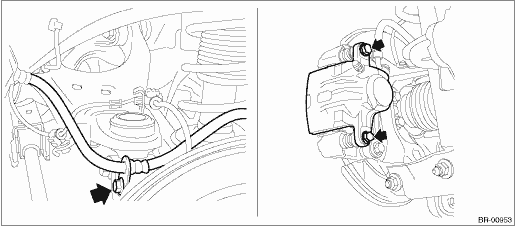

(1) Remove the bolts and remove the brake hose bracket.

(2) Remove the caliper bolt, and raise and hold the caliper body assembly.

NOTE:

Do not disconnect the brake hose from the caliper body assembly.

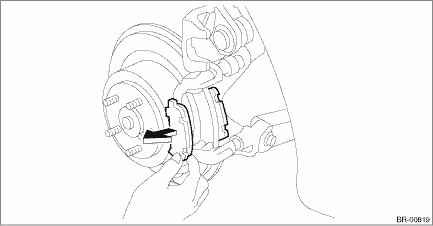

(3) Remove the brake pad from support - rear disc brake.

Inspection
BRAKE > Rear Brake PadINSPECTION1. Check the pad thickness.NOTE:• Always replace the pads of both wheels and both sides as a set.• Replace pad clips if they are twisted or worn.• ...

Installation
BRAKE > Rear Brake PadINSTALLATIONNOTE:Before installation, remove mud and foreign matter from the caliper body assembly and support - rear disc brake.1. Before installation, check the brake pad. ...
