Subaru Crosstrek Owners Manual: Manual transmission, front differential and rear differential gear oil

Subaru Crosstrek Owners Manual / Specifications / Manual transmission, front differential and rear differential gear oil

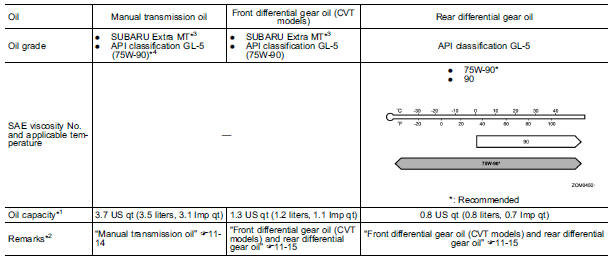

Manual transmission, front differential and rear differential gear oil

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. After refilling the gearbox with oil, the oil level should be checked.

*2: For more details about maintenance and service, refer to the indicated section.

*3: The vehicle is filled at the factory with this type of oil.

*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.

Fluids

Fluids

*1: Use one of the indicated types of fluid.

*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.

*3: For more details about maintenance and service, refer to the indicated section.

Engine coolant

Engine coolant

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. For more details about maintenance and service, refer to "Cooling system" F11-10.

Electrical system

Electrical system

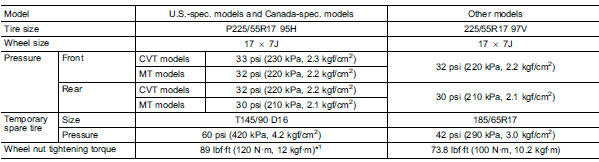

Tires

Tires

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to "Changing a flat tire" F9-5.

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your SUBARU dealer.

Engine oil
For the checking, adding and replacing procedure or other details, refer to "Engine oil" F11-8. NOTE The procedure for changing the engine oil and oil filter should be performed by a properly-tr ...

Fuses and circuits
Fuse panel located in the passenger compartment Fuse panel located in the engine compartment A) Main fuse ...
