Subaru Crosstrek Service Manual: Location

GLASS/WINDOWS/MIRRORS > Relay and Fuse

LOCATION

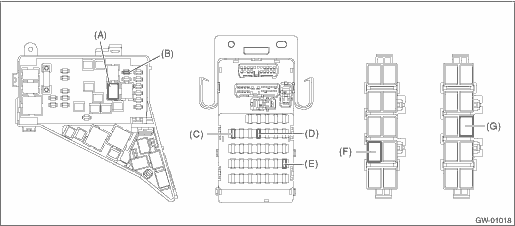

Main fuse box

Rear defogger relay

(A)

Fuse 25 A (rear defogger)

(B)

Relay & fuse box

Fuse 7.5 A (remote control mirror)

(C)

Fuse 15 A (wiper deicer)

(D)

Fuse 7.5 A (power window)

(E)

Relay holder

Power window relay

(F)

Wiper deicer relay

(G)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit">

Inspection
GLASS/WINDOWS/MIRRORS > Relay and FuseINSPECTION1. CHECK FUSE1. Remove the fuse and check visually.2. If the fuse is blown out, replace the fuse.2. CHECK RELAY1. Check the resistance between relay ...
