Subaru Crosstrek Service Manual: Installation

LIGHTING SYSTEM > Headlight Bulb

INSTALLATION

CAUTION:

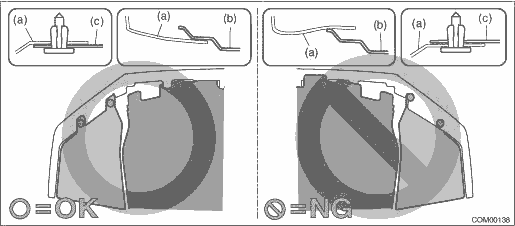

Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper face - front (a).

1. Install each part in the reverse order of removal.

2. When performing the work of HID type low beam RH, secure the flange section of the bumper face - front to the bracket - front bumper side.

3. When performing the work of HID type low beam RH, adjust the fog light beam. Front Fog Light Assembly > ADJUSTMENT">
