Subaru Crosstrek Service Manual: Installation

LIGHTING SYSTEM > Front Fog Light Assembly

INSTALLATION

CAUTION:

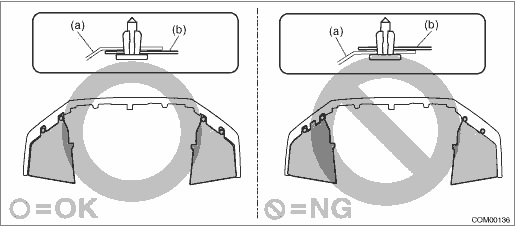

Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

1. Install each part in the reverse order of removal.

Tightening torque:

Fog light assembly - front: 7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

2. Adjust the fog light beam. Front Fog Light Assembly > ADJUSTMENT">

Removal
LIGHTING SYSTEM > Front Fog Light AssemblyREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Lift up the vehicle.3. Remove the screw and clips, and turn over the front side of th ...

Front fog light bulb
...
