Subaru Crosstrek Service Manual: Installation

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Level Sensor

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.

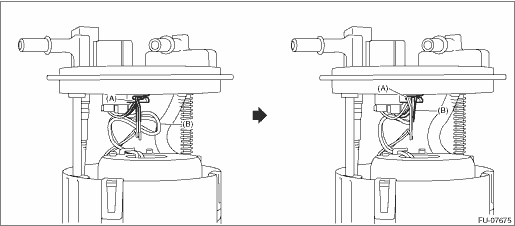

(A)

Fuel level sensor harness

(B)

Connector cable
