Subaru Crosstrek Service Manual: Installation

EXTERIOR/INTERIOR TRIM > Roof Molding

INSTALLATION

1. Remove the clips from the molding - roof, and attach to the studs on the vehicle.

CAUTION:

Always replace the clips that were damaged during removal of the molding - roof with new parts.

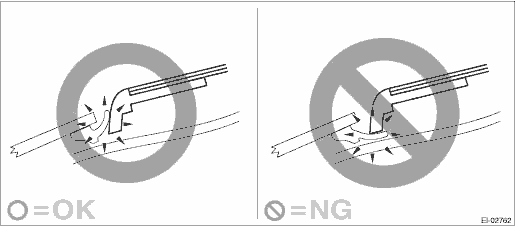

While installing the molding - roof, be careful not to catch the glass molding with the tip of the front side and rear side.

2. Push the front end of the molding - roof against the front window, and attach the forward positioning clip onto the rivet on the body.

(1)

Windshield

(2)

Positioning clip

(3)

Molding - roof

(4)

Rivet

(5)

Clip

3. While pushing down the molding - roof from above, connect the molding - roof and the clip.

Roof molding
...

Removal
