CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transmission Mounting System

INSTALLATION

1. PITCHING STOPPER

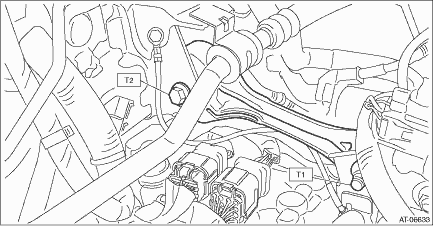

1. Install the pitching stopper.

Tightening torque:

T1: 50 N·m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N·m (5.9 kgf-m, 42.8 ft-lb)

2. Install the air intake boot assembly. Air Intake Boot > INSTALLATION">

3. Connect the battery ground terminal.

2. TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER

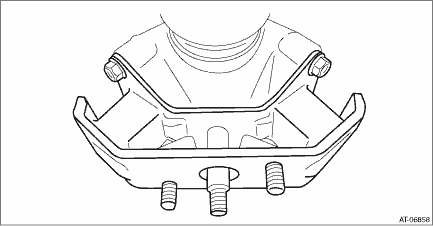

1. Attach the rear cushion rubber to the transmission.

Tightening torque:

40 N·m (4.1 kgf-m, 29.5 ft-lb)

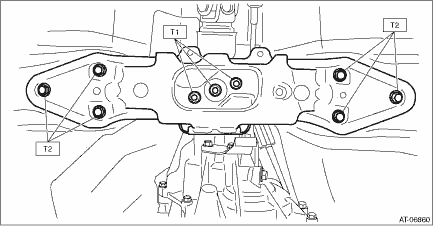

2. Install the crossmember.

Tightening torque:

T1: 35 N·m (3.6 kgf-m, 25.8 ft-lb)

T2: 70 N·m (7.1 kgf-m, 51.6 ft-lb)

3. Remove the transmission jack.

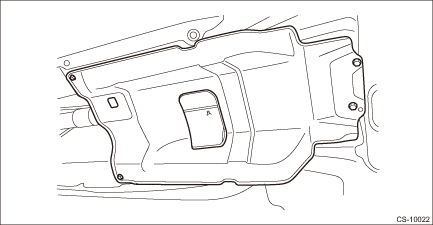

4. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

5. Install the center exhaust pipe. Center Exhaust Pipe > INSTALLATION">

6. Connect the battery ground terminal.
