INSPECTION

1. MOVING LOAD OF SUNSHADE ASSEMBLY

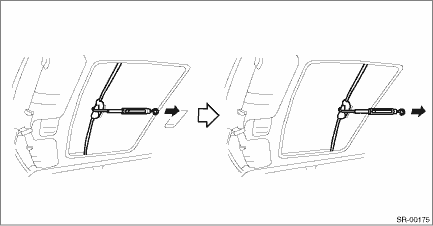

1. Attach a spring scale together with a cloth to the edge of sunshade assembly.

2. Pull the spring scale to check the moving load of the sunshade assembly.

Moving load of sunshade assembly:

14±6 N (1.43 kgf, 3.1 lbf±0.61 kgf, 1.3 lbf)

NOTE:

Moving load is larger at the beginning of pulling a spring scale, so take a spring scale reading while the sunshade assembly is sliding smoothly.

3. If the inspection result exceeds the standard, check the sunshade assembly or the rail assembly - sunroof for improper installation, and replace if necessary.
