STARTING/CHARGING SYSTEMS(H4DO) > Battery Current & Temperature Sensor
INSPECTION
1. BATTERY CURRENT SENSOR
CAUTION:
Pay attention to polarity when checking the resistance in the battery current sensor.

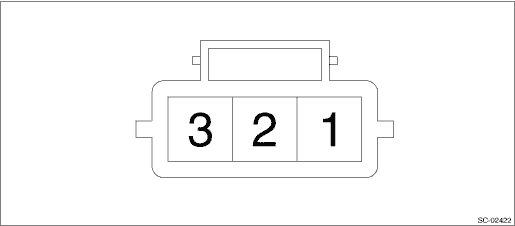

Check the resistance between the battery current sensor terminals.
Terminal No. | Standard |
1 (+) and 2 (−) | 3 — 10 k? |
1 (+) and 3 (−) | 0.5 k? or less |
2 (+) and 3 (−) | 3 — 10 k? |
2. BATTERY TEMPERATURE SENSOR

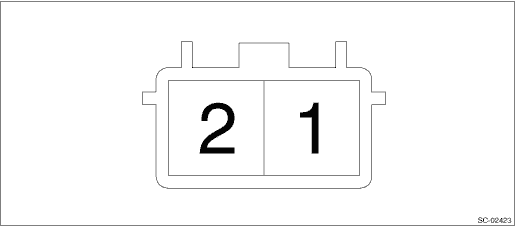

Check the resistance between the battery temperature sensor terminals.
Temperature | Terminal No. | Standard |
20 — 30°C (68 — 86°F) | 1 and 2 | 1.5 — 2.8 k? |
3. OTHER INSPECTIONS
Check that the battery current & temperature sensor has no deformation, cracks or other damages.
