FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Pump

INSPECTION

1. Check that the fuel pump has no deformation, cracks or other damages.

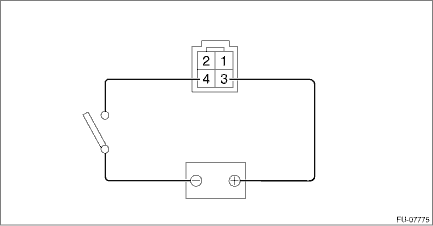

2. Connect the battery positive terminal to terminal No. 3 and the battery ground terminal to terminal No. 4, and inspect the fuel pump operation.

WARNING:

Wipe off fuel completely.

Keep the battery as far apart from fuel pump as possible.

Do not run the fuel pump for a long time under non-load condition.

Fuel pump
...

Removal
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel PumpREMOVALWARNING:Place “NO OPEN FLAMES” signs near the working area.CAUTION:• Be careful not to spill fuel.• Catch the fuel from ...
