WIRING SYSTEM > Harness Components Location

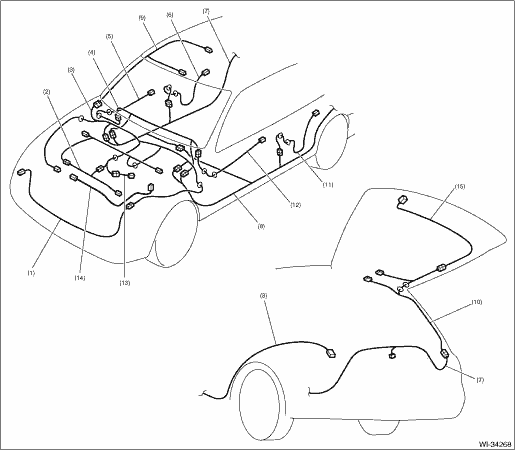

LOCATION
(1) | Front wiring harness | (7) | Rear wiring harness RH | (12) | Front door cord LH |
(2) | Engine wiring harness | (8) | Rear wiring harness LH | (13) | Transmission cord |
(3) | Bulkhead wiring harness | (9) | Roof cord | (14) | Generator cord |
(4) | Instrument panel wiring harness | (10) | Rear gate cord | (15) | Rear gate cord |
(5) | Front door cord RH | (11) | Rear door cord LH | ||
(6) | Rear door cord RH |
Inspection
SPEED CONTROL SYSTEMS(H4DO) > Accelerator PedalINSPECTION1. CHECK ACCELERATOR PEDAL SENSOR AREA (METHOD WITH CIRCUIT TESTER)1. Remove the glove box. Glove Box > REMOVAL">2. Turn the ignition switch to ON. (Engine OFF)3. Measure the voltage between ECM connector terminals.• Main ...
Electrical component location Location
INSTRUMENTATION/DRIVER INFO (DIAGNOSTICS) > Electrical Component LocationLOCATION(1)Combination meter(2)MFD(3)Data link connector ...
Wiring diagram
ENTERTAINMENT > Rearview Camera SystemWIRING DIAGRAMRefer to “Rearview Camera System” in the wiring diagram.– 6.2 inch display: Rearview Camera System > WIRING DIAGRAM">– 7 inch display: Rearview Camera System > WIRING DIAGRAM"> ...
