Subaru Crosstrek Service Manual: Disassembly
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Sunroof Assembly
DISASSEMBLY

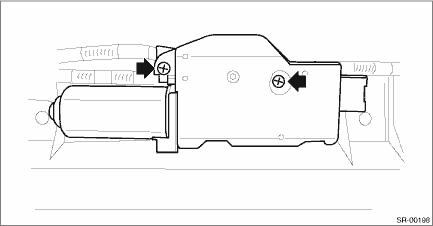

1. Remove the screw and remove the sunroof motor.

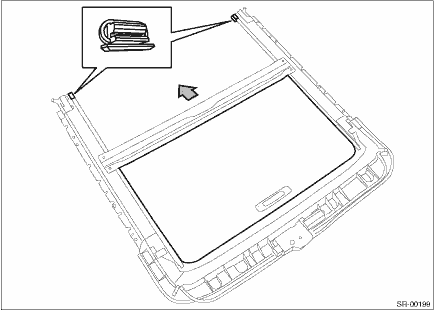

2. Remove the stopper rubber and pull out the sunshade assembly from the rail assembly - sunroof.

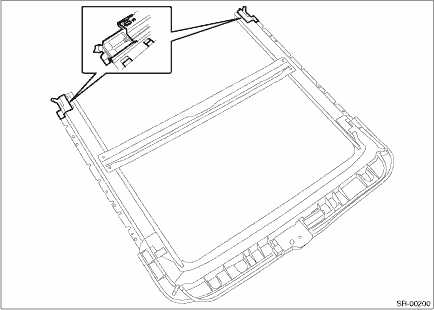

3. Disconnect the claws and then remove the drain holder.

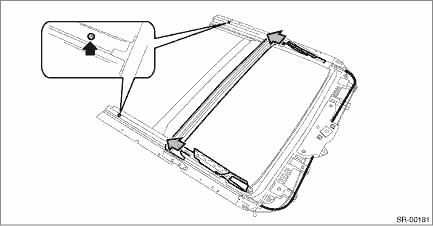

4. Remove the screw and pull out the cable assembly from the rail assembly - sunroof.
