Subaru Crosstrek Service Manual: Disassembly

REAR SUSPENSION > Rear Trailing Link

DISASSEMBLY

1. BUSHING A - TRAILING LINK

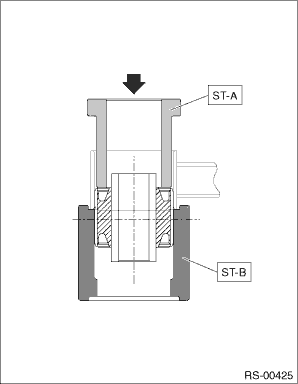

Using the ST, push out the bushing A - trailing link.

Preparation tool:

ST-A: INSTALLER (899874100)

ST-B: INSTALLER & REMOVER (BASE) (20099PA010)

2. BUSHING - TRAILING LINK

For the removal procedure of bushing - trailing link, refer to “Rear Axle” in the “DRIVE SHAFT SYSTEM” section. Rear Axle > DISASSEMBLY">

Removal
REAR SUSPENSION > Rear Trailing LinkREMOVAL1. Lift up the vehicle, and then remove the rear wheels.2. Remove the bolts and nuts, and then remove the trailing link. ...

Installation
REAR SUSPENSION > Rear Trailing LinkINSTALLATIONCAUTION:• Be sure to use a new self-locking nut.• Always tighten the bushing in the state where the vehicle is at curb weight and the whe ...
