Subaru Crosstrek Owners Manual: Components

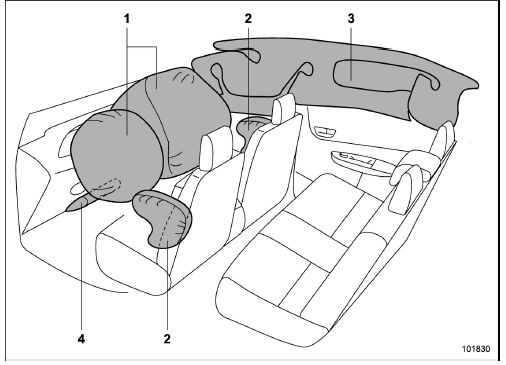

- SRS frontal airbag
- SRS side airbag
- SRS curtain airbag
- SRS knee airbag
The SRS airbags are stowed in the
following locations.
Driver's SRS frontal airbag: in the center
portion of the steering wheel
A "SRS AIRBAG" mark is located at the
pad of the airbag.
Front passenger's SRS frontal airbag:
near the top of the dashboard under the
"SRS AIRBAG" mark
SRS side airbag: in the door side of each
front seat seatback which bears an "SRS
AIRBAG" label
SRS curtain airbag: in the roof side
(between the front pillar and a point
behind the rear quarter glass)
"SRS AIRBAG" marks are located at the
top of each center pillar and each rear
pillar.
SRS knee airbag: under the steering
column
A "SRS AIRBAG" mark is located at the
door of the airbag.

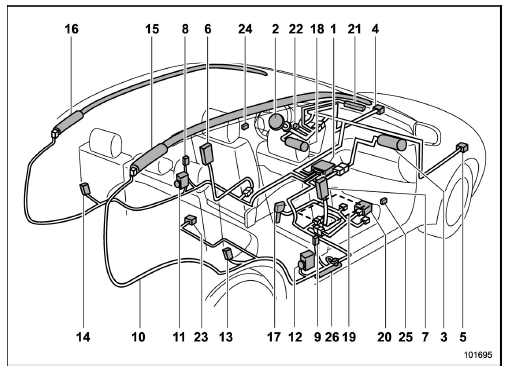

- Airbag control module (including impact
sensor and rollover sensor)
- Frontal airbag module (driver's side)
- Frontal airbag module (front passenger's
side)
- Front sub sensor (left-hand side)
- Front sub sensor (right-hand side)
- Side airbag module (driver's side)
- Side airbag module (front passenger's
side)
- Side airbag sensor (center pillar left-hand
side)
- Side airbag sensor (center pillar righthand
side)
- Airbag wiring
- Seatbelt pretensioner (driver's side)
- Seatbelt pretensioner (front passenger's
side)
- Curtain airbag sensor (rear wheel house
right-hand side)
- Curtain airbag sensor (rear wheel house
left-hand side)
- Curtain airbag module (right-hand side)
- Curtain airbag module (left-hand side)
- Seatbelt buckle switch (front passenger's
side)
- Knee airbag module (driver's side)
- Front passenger's occupant detection
system sensor
- Front passenger's occupant detection
control module
- Front passenger's frontal airbag ON and
OFF indicator
- SRS airbag system warning light
- Satellite safing sensor (under the rear
center seat)
- Front door impact sensor (left-hand side)
- Front door impact sensor (right-hand
side)
- Lap belt pretensioner (front passenger's
side)
WARNING
To obtain maximum protection in
the event of an accident, the
driver and all passengers must
always wear seatbelts when in
the vehicle. The SRS airbag is
designed only to be a su ...
Your vehicle is equipped with a SUBARU
advanced frontal airbag system that complies
with the new advanced frontal airbag
requirements in the amended Federal
Motor Vehicle Safety Standard (FMVSS)
...
