Subaru Crosstrek Service Manual: Component
WIPER AND WASHER SYSTEMS > General Description
COMPONENT
1. FRONT WIPER

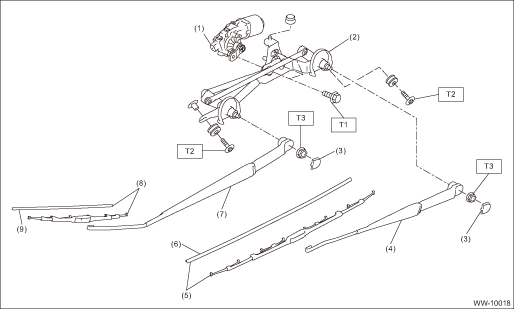

• Models without EyeSight
(1) | Motor ASSY - windshield wiper | (6) | Rubber ASSY - windshield wiper driver | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Link ASSY - windshield wiper | (7) | Arm ASSY - windshield wiper assistor | T1: | 5.5 (0.56, 4.1) |
(3) | Cover - windshield wiper arm | (8) | Blade ASSY - windshield wiper assistor | T2: | 6 (0.61, 4.4) |
(4) | Arm ASSY - windshield wiper driver | (9) | Rubber ASSY - windshield wiper assistor | T3: | 26 (2.65, 19.2) |
(5) | Blade ASSY - windshield wiper driver | ||||

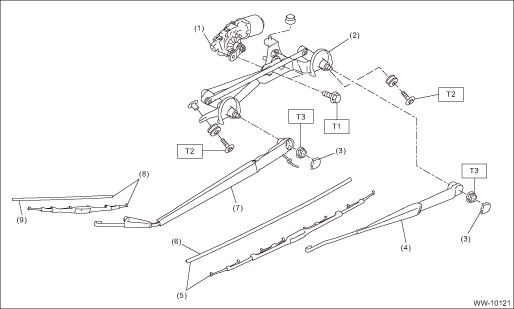

• Models with EyeSight
(1) | Motor ASSY - windshield wiper | (6) | Rubber ASSY - windshield wiper driver | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Link ASSY - windshield wiper | (7) | Arm ASSY - windshield wiper assistor | T1: | 5.5 (0.56, 4.1) |
(3) | Cover - windshield wiper arm | (8) | Blade ASSY - windshield wiper assistor | T2: | 6 (0.61, 4.4) |
(4) | Arm ASSY - windshield wiper driver | (9) | Rubber ASSY - windshield wiper assistor | T3: | 26 (2.65, 19.2) |
(5) | Blade ASSY - windshield wiper driver | ||||

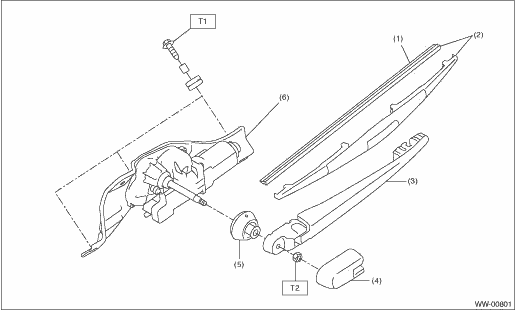

2. REAR WIPER
(1) | Rubber ASSY - rear wiper | (4) | Cover - rear wiper arm | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Blade ASSY - rear wiper | (5) | Cap - pivot wiper | T1: | 6 (0.61, 4.4) |
(3) | Arm ASSY - rear wiper | (6) | Motor ASSY - rear wiper | T2: | 8 (0.82, 5.9) |
3. WASHER TANK

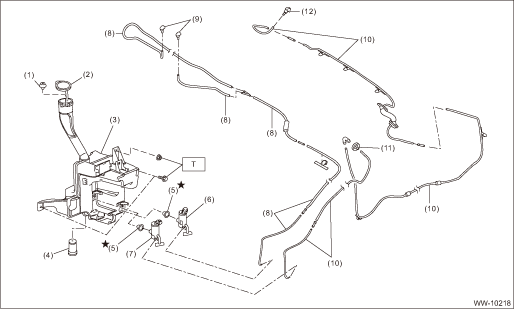

• Models without EyeSight
(1) | Clip | (7) | Motor pump ASSY - washer rear | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Holder - windshield washer tank | (8) | Hose - windshield washer | T: | 6 (0.61, 4.4) |
(3) | Tank - washer | (9) | Nozzle - windshield washer | ||
(4) | Sensor - washer tank | (10) | Hose ASSY - rear washer | ||
(5) | Packing - washer motor | (11) | Grommet - washer hose | ||
(6) | Motor pump ASSY - washer front | (12) | Nozzle - rear washer | ||

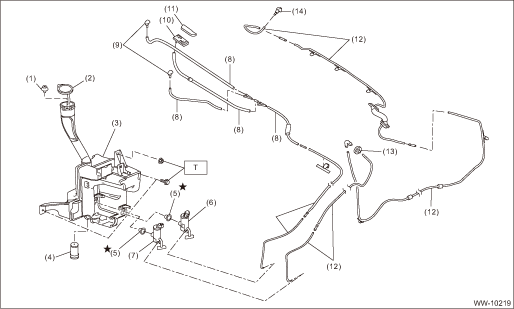

• Models with EyeSight
(1) | Clip | (7) | Motor pump ASSY - washer rear | (13) | Grommet - washer hose |
(2) | Holder - windshield washer tank | (8) | Hose - windshield washer | (14) | Nozzle - rear washer |
(3) | Tank - washer | (9) | Nozzle - windshield washer | ||
(4) | Sensor - washer tank | (10) | Joint - washer hose | Tightening torque: N·m (kgf-m, ft-lb) | |
(5) | Packing - washer motor | (11) | Cover - joint | T: | 6 (0.61, 4.4) |
(6) | Motor pump ASSY - washer front | (12) | Hose ASSY - rear washer | ||
