SPEED CONTROL SYSTEMS(H4DO) > General Description

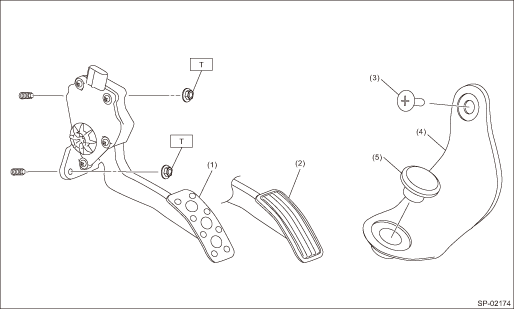

COMPONENT

(1)

Accelerator pedal ASSY (sport type)

(4)

Accelerator plate

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Accelerator pedal ASSY (normal type)

(5)

Accelerator stopper

T:

7.5 (0.8, 5.5)

(3)

Clip

Specification
SPEED CONTROL SYSTEMS(H4DO) > General DescriptionSPECIFICATIONAccelerator pedalStrokeAt pedal pad50 — 59 mm (1.97 — 2.32 in) ...

Preparation tool
SPEED CONTROL SYSTEMS(H4DO) > General DescriptionPREPARATION TOOL1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS — SUBARU SELECT MONITOR 4Used for setting of each function and troublesho ...
