PARKING BRAKE > General Description

COMPONENT

1. PARKING BRAKE (REAR DISC BRAKE)

(1)

Back plate - rear brake

(7)

Spring - secondary shoe return

(13)

Cup - shoe hold-down

(2)

Retainer - rear brake

(8)

Spring - strut

(14)

Parking brake shoe (primary)

(3)

Spring washer - rear brake

(9)

Strut - brake

(15)

Pin - primary shoe hold-down

(4)

Parking lever - rear

(10)

Adjuster ASSY - rear brake

(16)

Pin - secondary shoe hold-down

(5)

Pin - parking lever

(11)

Spring - primary shoe return

(6)

Parking brake shoe (secondary)

(12)

Spring - adjuster

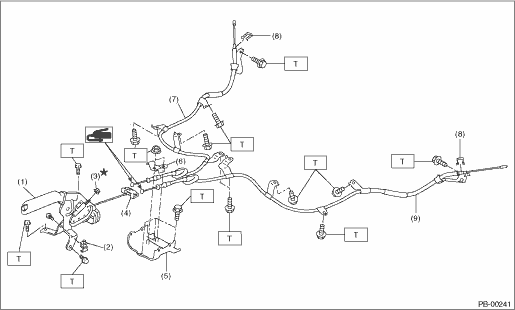

2. PARKING BRAKE LEVER & CABLE

(1)

Lever assembly - hand brake

(5)

Bracket

(9)

Cable ASSY - parking brake LH

(2)

Switch ASSY - hand brake

(6)

Clamp A - hand brake cable

(3)

Adjusting nut (self-locking nut)

(7)

Cable ASSY - parking brake RH

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Equalizer

(8)

Clamp B - hand brake cable

T:

18 (1.84, 13.3)

General description
...

Preparation tool
PARKING BRAKE > General DescriptionPREPARATION TOOL1. GENERAL TOOLTOOL NAMEREMARKSCircuit testerUsed for measuring resistance, voltage and current. ...
